Today's Tip

Layer States and Viewports

Did you know that Layer States can be saved and used to control visibility of layers per viewport? If you create and save a couple of layer states within an active viewport, you can then toggle them back and forth without affecting any other viewports, or model space. The changes only occur within the active viewport.

Try this:

Create a bunch of random objects in model space on different layers. Now switch to paper space and create two viewports so that you can see all the model space objects in both viewports. Now activate one of the viewports and open the Express Tools LMAN layer states manager. Create and save a new layer state. Now close LMAN and freeze some of the objects within the viewport. Open LMAN back up and create another new layer state. All of this must be done within the active viewport. You can now toggle back and forth between the two layer states within the active viewport without affecting model space or any other viewports. You can also switch to another viewport and use the same layer states on it, or create new ones.

This tip was submitted by Cad64

Yesterday's Tip

Easily set properties for multiple blocks in Tool Palettes

Selecting multiple blocks

Lots of people think that when you have blocks saved in a Tool Palette, you have to Right-click ❯ Properties each individual block to apply custom settings. What if you have 20 blocks and you want them all to have the same setting? Well, just hold the Ctrl key and highlight the blocks you want within the Tool Palette, then right click on any of the selected blocks to apply global settings.

Also, you can hold the Ctrl key to select your first block, then hold the Shift key to select the last block, then right click on any of the selected blocks to apply a global settings. Makes things much easier than one at a time.

This tip was submitted by StykFacE

Monday's Tip

Absolute and Relative Coordinates

Coordinate Interpretation
25,75 depends on context
@25,75 relative
#25,75 absolute

It used to be very simple. Enter a coordinate and AutoCAD interpreted it as an absolute coordinate. Enter a coordinate preceded by "@" (the at sign) and AutoCAD interpreted it as a relative coordinate. This simple rule changed when dynamic input was introduced and now the interpretation of coordinates is contextual. For example, when you draw a rectangle using RECTANG, the coordinate for the second point is interpreted as absolute with dynamic input turned off and as relative with dynamic input turned on. Really, try it and see.

Fortunately, there's a new coordinate prefix that forces an absolute coordinate, even when AutoCAD decides you want a relative one. Precede any coordinate with "#" (the hash sign) to force an absolute coordinate.

This tip was submitted by dbroada

Sunday's Tip

Quick Extrusions with Presspull

PresspullAs of AutoCAD 2007, there's no need to draw closed shapes before extruding. The Presspull tool will find any enclosed area (just like BHATCH) and extrude it.

Any objects can be used as boundaries; lines, circles, splines, they all work. This makes building 3D solid models much quicker than before.

This tip was submitted by David Watson

Saturday's Tip

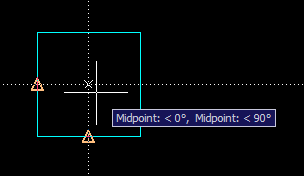

Object snap tracking

object snap trackingFinding the centre (centroid) of a square or rectangle used to require the use of at least one construction line but with object snap tracking, the same point can be found without having to draw any other objects.

This technique relies on the fact that "Midpoint" is set as one of your running object snaps and that polar tracking (POLAR) and object snap tracking (OTRACK) are on. Say you have a square and you want to draw an inscribed circle. Start the circle command and then hover the cursor over one of the vertical sides of the square until the midpoint snap icon appears. Move towards the centre and a dotted tracking like will appear. Next, hover the cursor over one of the horizontal sides of the square until the midpoint icon appears, again, move towards the centre of the square. This time, when you get close to the centre, both horizontal and vertical tracking lines appear and you can snap to the intersection simply by left-clicking. Finish the circle by snapping to any midpoint.

This tip was submitted by David Watson

Friday's Tip

AutoCAD 2007 - Where's my old XREF Manager?

CUI Dialogue BoxA lot of people using AutoCAD 2007 and above don't like the new XREF Manager, so here's a simple way to get the old one back.

AutoCAD 2007 introduced a new way to manage XREFs and to bring up the "old" XREF Manager, you have to type CLASSICXREF at the command line. Well, if you want things back the way they were and use the classic XREF Manager as the default from the keyboard and from the menu, a few adjustments will get you there…

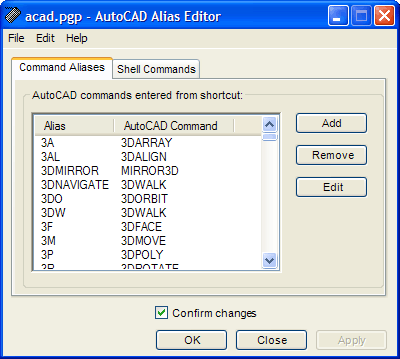

First, go to Tools ❯ Customize ❯ Edit Program Parameters (acad.pgp). This command opens the ACAD.PGP file in Notepad. This is where all the keyboard shortcuts are defined.

Next, scroll down until you see XR (or use Edit ❯ Find…), change the value from *XREF to *CLASSICXREF and save (File ❯ Save). Close Notepad and return to AutoCAD. Enter the command REINIT, check the "PGP File" checkbox and click "OK". That fixes the keyboard so that next time you type XR, you'll see the old manager and not the new one.

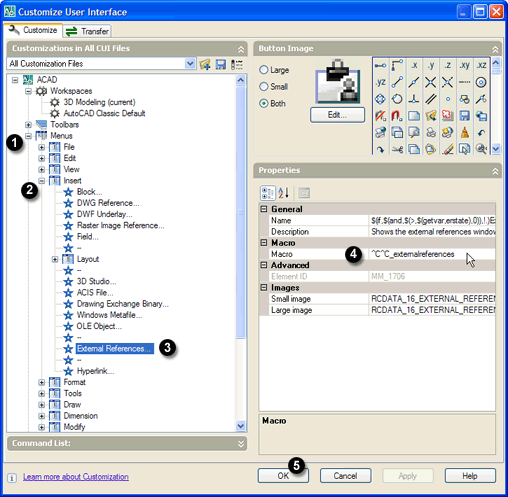

To change your Menu, type CUI at the command line. In the "Customizations in All CUI Files" pane of the "Custom User Interface" dialogue, go to Menus ❯ Insert ❯ External References… and click on it once to highlight it.

Now, in the "Properties" pane, change the "Macro" setting from ^C^C_externalreferences to ^C^C_classicxref, click "OK" to save the changes and you're done.

This tip was submitted by StykFacE

Thursday's Tip

Shift for fillet radius zero

Do you get fed up having to set your Fillet alternately to a radius value and then to 0 to get a right angle?

You don't have to! Just fillet your lines while holding down Shift and the current default fillet radius value will be ignored.

This tip was submitted by dbroada
