Shorten the Plot Scales List in a Viewport

by Michael Beall

Scale menuIf you plot from a viewport on a Layout tab, and you have a specific collection of plot scales you typically use, you may be interested in editing that list to display only the ones you need to see.

There are other approaches to accessing the same plot scale regularly, but this is one of the most straightforward.

How to Modify the List of Plot Scales

  1. When you're in a viewport, click the location on the Status bar where you see the scale/factor for the current viewport.

  2. Scroll to the bottom, then click Custom… to open the Edit Drawing Scales dialog box.

  3. I would recommend keeping 1:1, but then select those plot scales you really don't need, then click Delete.

  4. Organize the ones you use all the time by using Move Up or Move Down.

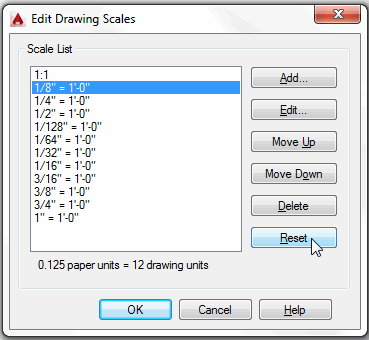

    Edit scales dialog

Note: If you totally gom it up, you can always hit Reset, then choose your desired collection of either Imperial, Metric, or both.
