Data Links and New Tools

by David Watson

This month I have the great pleasure of standing in for Michael while he takes a well-earned rest after delivering his 100th Corner last month. Never fear, Michael will be back next month, but in the meantime I have a few things you might find interesting.

We all work with data and commonly, we need to integrate this data with our AutoCAD drawings. This month I demonstrate how to make a data link between AutoCAD and Microsoft Excel and how to display your spreadsheets in an AutoCAD table.

In other articles, I'm covering a few things new to AutoCAD 2011 and 2012 that you may have missed but should know about because they are great for productivity.

If you'd like to comment on anything in this month's Corner, please visit our friendly AutoCAD forums or contact me directly.

Thanks for listening!


Data Link Excel to AutoCAD

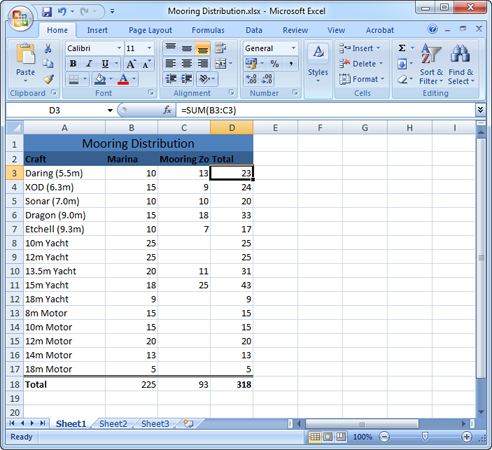

An Excel spreadsheetIn the bad old days, linking Excel spreadsheets to your AutoCAD drawings using OLE (Object Linking and Embedding) was, at best, a hit and miss affair. OK, well it kind of worked but it was never very satisfactory and was subject to various limitations.

With the advent of Tables and Data Linking in AutoCAD, the whole process of adding live spreadsheets to drawings became a breeze technically and much more pleasing aesthetically. Although this technique has been available since AutoCAD 2008, many people are not aware of it, so I thought it would be good to demonstrate it using AutoCAD 2012 (although the interface is just the same in 2011).

I'm guessing that most of you at some time have had a parts list or schedule or some other tabula data in Excel that needed to be added to a drawing, so here's how. It's a 2 part process; first you make the data link and next you create the table… yes, that's all there is to it!

If you'd like to follow this demonstration, download the Excel file and save it to a suitable folder.

How to Link an Excel spreadsheet to an AutoCAD table

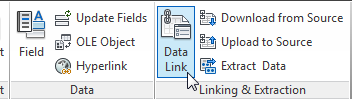

  1. Data LinkOn the AutoCAD Ribbon, click the Insert tab and then the Data Link button on the Linking & Extraction panel.

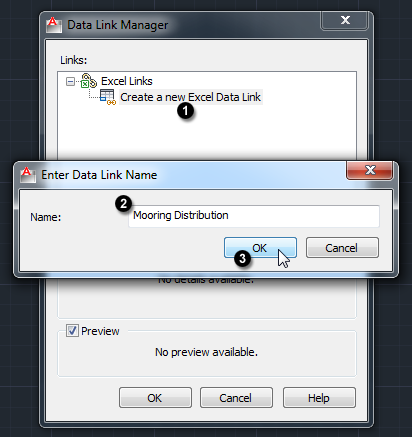

  2. In the Data Link Manager, click the Create a new Excel Data Link option and give the new data link a name (I usually make this the same as the Excel file name to avoid confusion). Click OK

    Data Link Manager

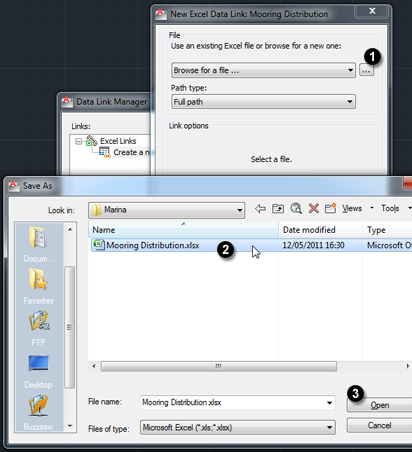

  3. In the New Excel Data Link dialog, click the elipsis button (three dots) and navigate to your Excel file. Select the file and click Open.

    New Excel Data Link

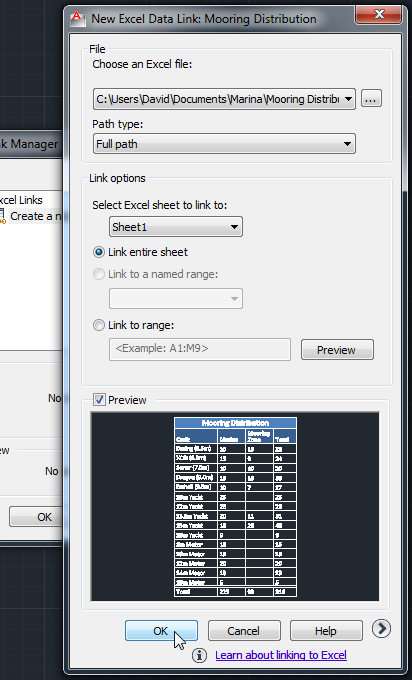

  4. You should now see a preview of exactly what the table will look like in AutoCAD. Click OK. That completes the data link part.

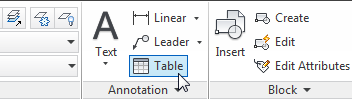

  5. TableNext, click the Home home tab on the Ribbon and click the Table button in the Annotation panel.

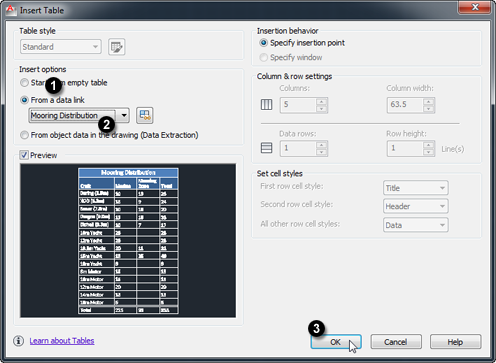

  6. In the Insert options section of the Insert Table dialog, click the From a data link radio button if it is not already checked. Select your data link from the drop-down list (this will be the name you gave it earlier). Check the preview for confirmation and then click OK.

    Insert options

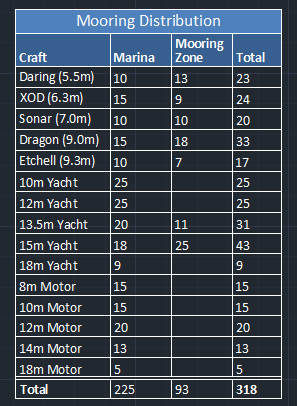

  7. Pick the insert point for the table when prompted and that's it. You should now see your Excel spreadsheet dynamically linked to a matching AutoCAD table. If you need to resize the table, just use the Scale command - this ensures that the text and cells all scale proportionately.

    The table in AutoCAD

The great thing about this is that any changes to the Excel spreadsheet will be updated in your drawing, just like an Xref. Notice too that all the styling on your spreadsheet such as font weights and cell backround fills is translated into AutoCAD table cell styles for you - neat.

Top of page

Power Tool

Blend Curves

Blend CurvesSome of the most useful new features in AutoCAD 2012 are those that didn't make the headlines. Blend Curves is one such tool that slipped under the radar but it solves a problem that is very difficult to resolve manually. Curiously, this little gem is hidden under the Fillet tool on the Modify panel, so even if you're already using AutoCAD 2012, it's possible that you've missed it.

Essentially, Blend Curves creates a spline that is tangential to any 2 existing curves (Arcs, Splines or Polyline arc segments).

How to join 2 arcs with Blend Curves

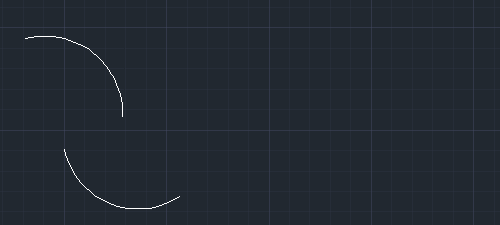

  1. Draw two arcs similar to the ones shown below.

    Two Arcs
  2. On the Home tab of the Ribbon, click the Fillet flyout in the Modify panel and select Blend Curves.

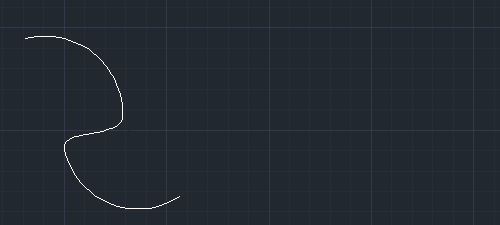

  3. Follow the prompt and select the two ends of the arcs that you want to join. The result should be similar to the illustration below.

    Blended curves

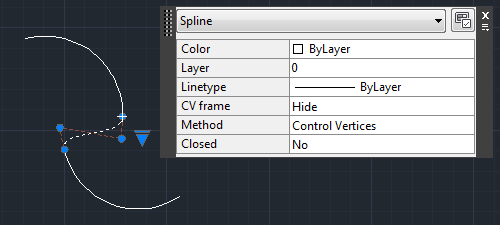

  4. The default setting for the spline gives a good result but if you need to tweak the form of the spline, just pick it to select it and edit the spline by stretching the vertices until you have it just the way you want it.

    Editing the spline

Blend Curves is a great productivity tool that you may only use occasionally but it's so efficient at what it does that it's worthy of its place on the Modify panel.

Top of page

The Odd Spot

The Ribbon AND Toolbars

OK, I admit it, I like the Ribbon (or at least I've grown to like it) and there's no doubt that it is improving with each AutoCAD version. For example, I'm really pleased to see more space given to the Draw and Modify panels in 2012, they always felt rather cramped in 2011 and this is rather odd considering how important they are.

Despite my support for the Ribbon interface, there are occasions where I'd like to use the "classic" style toolbars with the Ribbon. I don't want to go back to using the Classic workspace, I want the best of both. Well, the AutoCAD interface is nothing if not flexible and it's easy to achieve.

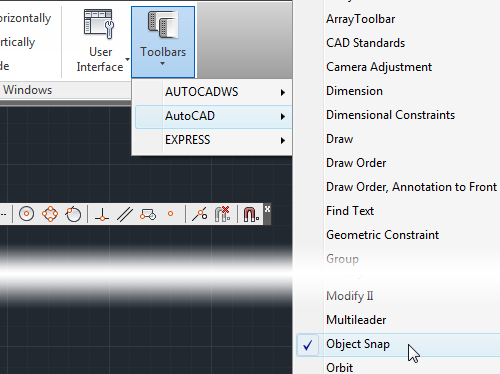

I like having the Object Snap toolbar on screen while I'm working. I know the Osnap overrides are just a right-click and sub-menu away, but why bother doing that when you can have one-click access to those options on a floating toolbar. So, just click the View tab on the Ribbon, then in the Windows panel, click Toolbars and then select AutoCAD from the menu; there are all the toolbars arranged in alphabetical order. Simply select the ones you want.


Top of page

The Basics

Add Selected and Select Similar

Here's a couple of "under the radar" features that can really speed up your drawing work.

Add Selected

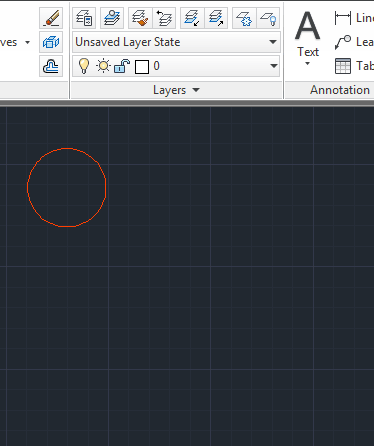

Add Selected made its debut in AutoCAD 2011 but I must admit that I didn't really notice it until quite recently. Essentially, it invokes the command used to create ant selected object. Moreover, it will match the properties (layer etc.) of the selected object. This allows you to (for example) draw a circle on the same layer as the selected circle, even if that layer is not current. It's a great timesaver and the fact that it's on the right-click menu means that it's really efficient to use too.

Add Selected

Select Similar

Select Similar is another recent tool that works by matching properties - it's a kind of quick selection filter that can be used to select any objects that match the selected object or objects.

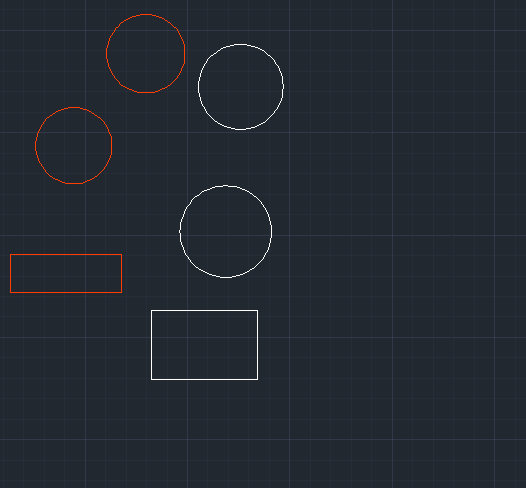

In the example below, I have drawn a bunch of objects (circles and rectangles), some on a layer called "Circle" and some on layer 0. If I want to select all circles on both layers, all I need to do is select one circle on each layer, right-click and select Select Similar from the menu. It's yet another very simple but effective productivity tool.

Select Similar

Top of page

Left Field

Our "new" planet Ceres: On 24th August 2006, Pluto ceased to be a planet and was removed from the list of planets all schoolchildren must learn. Where did it go? It was reclassified as a Dwarf Planet. In fact, there are a number of objects in the solar system that are similar in size to Pluto and it didn't seem fair not to include them too, so the International Astronomical Union created the new classification for objects that were essentially planet-shaped but too small to be considered planets in their own right. However, if you don't like the idea of losing Pluto, then you must at least add Ceres to your extended list of planets. Ceres is somewhat smaller than Pluto and has an orbit between Mars and Jupiter in the asteriod belt.
