The Big Dog in A2017

PDF Import on the RibbonThere are some pretty nice features in AutoCAD 2017, but I think my corporate Facilities customers will consider PDF Import to be a lifesaver, since they are frequently on the receiving end of PDF floorplans.

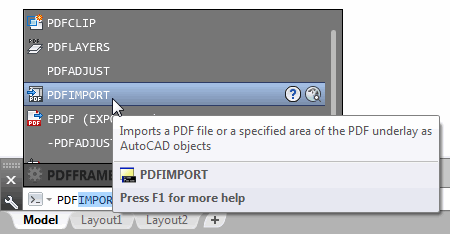

PDF Import from the command line

This will just be an introduction to the feature. The command's Help window covers all the details.

Insights

  • PDFIMPORT can be used on DWGs with PDF Underlays already attached, or the default option is to select a File (PDF) to import.

  • They have yet to perfect the recognition of text objects. I participated in a Beta review where text was recognized in some cases, and in others it wasn't. Stay tuned.

  • Once the command is complete, you may want to consider running Delete Duplicate Objects. See Michael's Corner, March 2012.

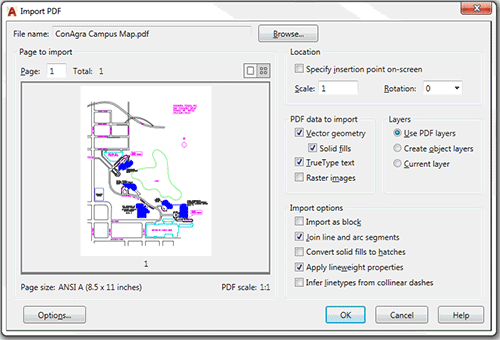

Import PDF dialogue box

How to Import a PDF File Into the Current Drawing

  1. You can launch this feature from the Insert tabPDF Import, or just type it.

  2. Press [Enter] for the File option, then navigate to, and select the PDF, then click Open.

    Note: If you have a location where you typically save PDF files, you can specify that path with the Options button at the bottom of the Import PDF dialog box.

    Options button

  3. The defaults work fine on the half dozen PDF files I tried this on. Here's the Help info on Layers:

    Use PDF layers
    Creates AutoCAD layers from the layers stored in the PDF file, and applies them to the imported objects. The layer names have a PDF prefix. If no layers are present in the PDF file, object layers are created instead.

    Create object layers
    Creates AutoCAD layers for each of the following general types of objects imported from the PDF file: PDF_Geometry, PDF_Solid Fills, PDF_Images, and PDF_Text.

    Solid Fills

    Current layer
    Imports all specified PDF objects to the current layer.

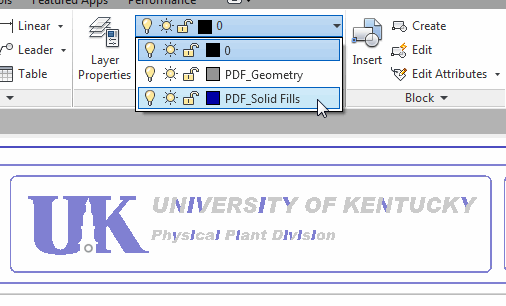

    Note: Keep the box checked for Solid fills. Presently, what appears to be TrueType fonts are, shall we say ‘randomly’ recognized as either fills or Hatch objects. In the image, notice that only certain strokes of the letters are on the PDF_Solid Fills layer.

How to Use PDFIMPORT on a PDF in the Drawing

  1. Creating a windowYou can launch this feature from the Insert tabPDF Import, or just type it.

  2. Select the PDF object and you get the following prompt:

    Specify first corner of area to import or [Polygonal/All/Settings] <All>:

  3. In this illustration, I created a window around a portion of the attached PDF map. After creating the window, you get the following:

    Keep, Detach or Unload PDF underlay? [Keep/Detach/Unload] <Unload>: U
    Binding PDF file C:\CTG\CADTutor\ConAgra Campus Map.pdf, page 1 ...

  4. Although it says, “Binding PDF file…” the Unload option technically unloads the referenced PDF and displays the condition in the External Reference Manager. Which means, yes(!), you can Reload that reference if need be.

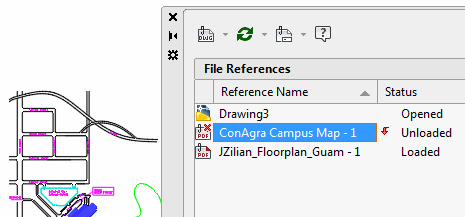

    File References

Bottom Line

This is pretty fantastic. There are some shortcomings in recognizing text objects, but those are being worked on at this very moment. Unfortunately, Scan-to-PDF files are not able to be imported to AutoCAD geometry with this feature, no doubt due to their clarity… or lack thereof.

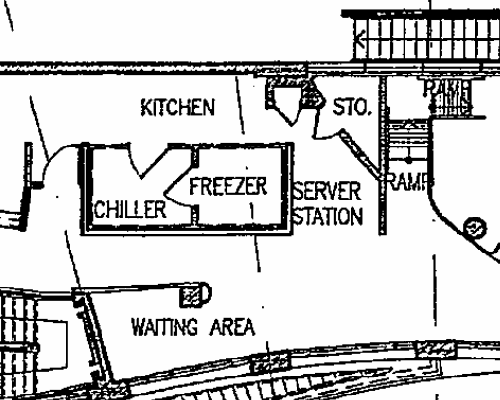

A scanned plan

Other than that, I think it's pretty wonderful that we now get layers, as well as recognition of lines, circles, and arcs.

Top of page

Power Tool

Copy Nested [Express Tools]

Copy nestedExpress Tools have some nice little routines like this Copy Nested Objects [NCOPY].

Insights

  • Standard COPY procedures apply.

  • A polyline within a block/Xref retains its polyline definition (i.e., the copy is also a polyline).

  • A block within a block/Xref is not retained as a block. Only the selected geometry is copied.

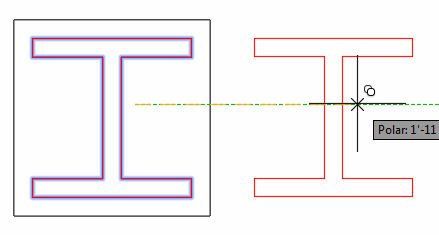

    Nested block

  • If you want to copy a nested block from within another block, use the Block Editor [Home tabBlock panelEdit] to open the selected block in the Editor, then use Ctrl + C to Copy the nested block. Close the Block Editor, then Ctrl + V to Paste the copied block. Simple but effective.

Top of page

The Odd Spot

“Best of” Odd Spot: Wipeout

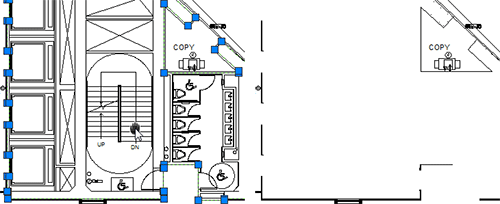

It's very powerful… but it will mess with your head if you're on the receiving end as shown in these two images. The left image is what they were expecting… and the right image is what they were seeing!

Drawing before and after Wipeout

Wipeout in actionOnce I received their drawing, I used the Selection Cycling feature (see Michael's Corner, August 2012) and discovered the Wipeout object.

A practical application of the Wipeout object would be with Xrefs as originally presented in Michael's Corner, February 2006, and you'll find another application for it in Michael's Corner, February 2008, when drawing reflected ceiling plans.

Insights

  • If you move your cursor over an empty area, and something highlights, you probably have a Wipeout object.

  • In the Wipeout command, there's an option to show the Wipeout object's frame, but not plot it.

    Command: WIPEOUT
    Specify first point or [Frames/Polyline] <Polyline>: F
    Enter mode [ON/OFF/Display but not plot] <OFF>: D

  • Some people will put a wipeout object under text rather than use Background Mask in Mtext. If that's the case, and the text is in a block, use Block Editor to edit the block definition.

    Wipeout object

And if you're using a Wipeout object in your drawing, be nice and let other folks know what's going on, especially others outside your company to whom you send your drawings. “Do unto others”, and all that.
