Tool Palette Basics

by Michael Beall

I learned something new about tool palettes last year — thanks to Nate at Wellcare in Tampa — and I wanted to pass it along. It's a trick that I should have thought of and can be used in a number of situations in AutoCAD. Specifically, the Ctrl key!

Short version: Rather than doing a right-click Copy / right-click Paste — which always put the copy at the bottom of the tab — simply hold down Ctrl, then drag & drop.

How to Copy Tools Onto and Between Tabs on a Tool Palette

  1. Open the Tool Palette (Ctrl + 3). [For future reference, if you're new to palettes, I have a sample palette on my website, complete with a block source drawing and instructions.]

  2. Copy a toolTo copy a tool below itself, hold down Ctrl, select the tool, then drag it down a smidge and release. You should see a very small plus-sign at your cursor indicating that you are making a copy.

  3. To copy a tool between tabs, hold down Ctrl, then drag your cursor onto another tab and hold it there. You will initially see a No-Can-Do sign, but then it will flip over to that tab.

  4. Drag your tool to the desired location — you will see the same plus-sign at your cursor — then release!

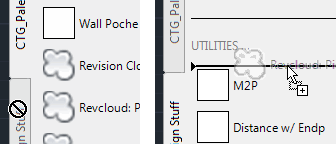

    Copying between tabs
